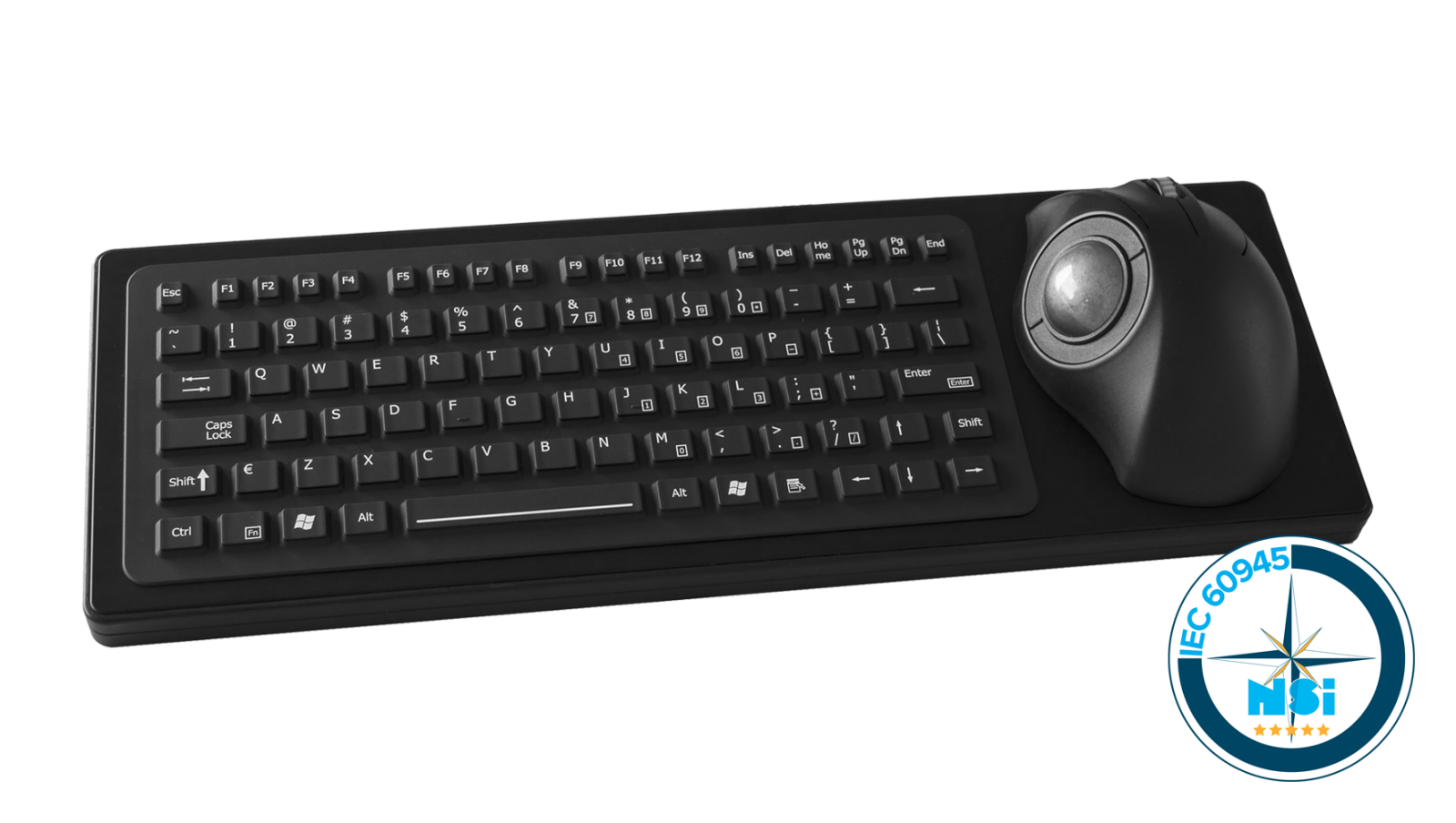

IEC60945 silicone keyboard with ergonomic trackball - desktop

RKTE85-MC1

Add to quote

Certificate of conformity fully compliant with IEC60945
Compact layout, 85 full travel keys
Dimmable backlighting at 8 levels by two dedicated keys (FN key + arrow up/down)
Low power LED's warrant for a long life
38 mm waterproof ergonomic trackball with hall-effect scroll wheel
Removable ball for easy cleaning
Integrated left, middle and right switch functionality
No external power supply necessary, keyboardport power sufficient
Compact thickness

Technical datasheet (PDF - 1092KB)

3D Drawing On request

General technical specifications

KEYBOARD

Sealing : IP67 sealed frontal

Desktop version : ABS enclosure

Keys : 85 rubber keys
Pointing Device : 38 mm ergonomic trackball
Output : 1,6 m. USB cable
Power requirements : Directly from USB port
Operating temp. : 0°C to +70°C
Storage temp. range : -40°C to +85°C
Switch force : 300 grams +- 100 grams
Switch stroke : 1,5 mm
Lifetime switches : 1 million actuations

TRACKBALL
Ball size/material : Ø38.1mm (1.5") / Epoxy resin
Tracking force : 20-40 grams – PTFE seal
Ball load : 100N (10Kg) max. downward pressure for 2 minutes @ 20°C
Resolvable ball speed : 30 IPS (inches per second)
Tracking engine : Infra-red optical navigation technology
Removable ring : PC/ABS, black

COMPASS SAFE DISTANCE : 0,6 m

SCROLL WHEEL
Wheel diameter : Ø25mm
Wheel material : PC/ABS
Wheel colour : Grey
Encoding technology : Hall effect
Magnet strength : N42
Detent-scrolling force : 30 grams nominal
Switch actuation force : 275 ± 125 grams force

Non certified version on RKTE85 range

This range is also available without IEC60945 certification

see RKTE85
